Showcase Product Detail

	Starting At: $9,790.00

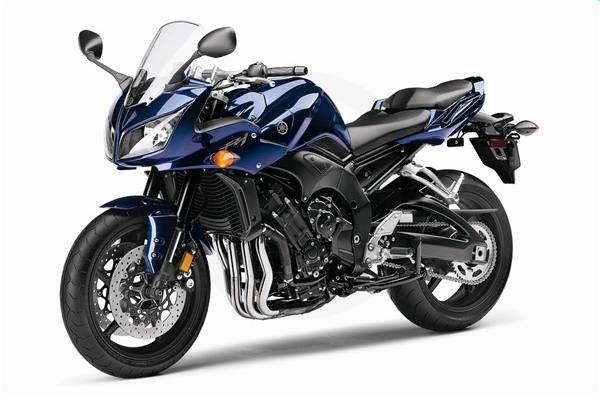

2009 Yamaha FZ1

---

Request a Quote

Financing Calculator

Request a Brochure

Financing Form

View All ThumbnailsHide Thumbnails

---

Request a Quote

Financing Calculator

Request a Brochure

Financing Form



• OEM Overview
• Specifications
• Compare Models
• Current Promotions

Overview

STRIPPED DOWN AND READY TO RUMBLE.


Think of the FZ1 as an upright R1 ready to take on the world. There's more tuel-injected power in that smooth 20-valve four-cylinder than most riders will ever use in a sure-footed chassis. It's a rider's best ally, from track days, to commuting, to touring.

• Our ultimate street brawler brings 998cc of fuel-injected previous generation R1 power to the fray, in a light-and-strong aluminum frame.
• Sculpted fuel tank and one-piece handlebar move the rider forward for aggressive naked-bike excitement.
• Adjustable suspension lets the FZ1 be dialed in for a wide range of uses, everything from urban assault to sport touring.

Engine

• 998cc DOHC 20-valve previous generation R1 engine is tuned for tremendous mid-range punch and massive top-end power.
• R1-style fuel injection with computer-controlled sub-throttle valves provides precise fuel/air mixture for superb power delivery across the entire rev range.
• Closed-deck cylinder block provides great strength while allowing a narrow engine in spite of big, 77mm bores.
• Narrow-angle five-valve combustion chambers produce a highly efficient 11.5:1 compression ratio.
• Carburized connecting rods with fractured big ends produce a quick-revving engine with excellent high-rpm durability.
• High silicon-content ceramic-composite cylinder sleeves ensure great heat dissipation for consistent power delivery and reduced friction.
• Four-into-one chamberless short-style exhaust contains stainless steel EXUP and three-way catalyst with Oxygen sensor for outstanding power delivery throughout the rev range and low emissions.
• Curved high-capacity radiator with twin ring-style fans keeps everything cool under all conditions.

Chassis/Suspension

• Aggressive chassis geometry for quick handling; the engine is shoved forward for excellent handling.
• Aggressive ergos: 4.75-gallon tank moves the rider forward into a position of total control—supersport-like 51 percent front-wheel weight bias means confident, quick handling.
• Light-and-rigid aluminum frame uses a special mold casting technique that allowed engineers to minutely vary metal thicknesses for optimal rigidity throughout.
• Stressed-engine design holds the engine in place with six mounts, for excellent vertical stiffness and handling.
• Rigid Controlled-Fill aluminum swingarm reduces drive chain–induced suspension movement for excellent handling, tire grip and looks.
• 43mm fully adjustable inverted fork contains compression damping circuitry in the left leg and rebound in the right—proven effective on the YZR-M1 MotoGP bike—as well as stiff springs for excellent handling.
• Two 320mm front discs squeezed by monoblock four-piston calipers and a single 245mm rear disc serve up strong stopping power.
• Removable subframe for easy maintenance and detachable passenger footpeg mounts for even more stripped-down style.
• Light, R1-spec five-spoke wheels and fat radial tires, including a 190/50-ZR17 rear, complete the look and serve up the traction.

Additional Features

• Fairing features a half-cowl design with R1-style headlight layout that creates a super-aggressive naked bike profile.
• High-tech instrument display features analog tachometer, digital speedometer, dual trip meter with miles on reserve function, odometer, water temperature and lights for neutral, high beam, low fuel and turn signals—also a fade-in lighting feature with adjustable brightness.
• Two-piece seat serves up great comfort along with total control.
• Passenger grabrails for riding comfort.
• Durable O-ring-sealed drive chain provides longer chain life.
• Dual 12V 60/55-watt multi-reflector headlight features a sleek, R1-type profile for superb aerodynamics and visibility.
• Standard toolkit located in convenient storage compartment under passenger seat.

Specifications

• Engine Type: 998 cc liquid-cooled inline 4-cylinder; DOHC, 20 valves
• Bore x Stroke: 77 x 53.6 mm
• Compression Ratio: 11.5:1
• Carburetion: Fuel injection
• Ignition: TCI: Transistor Controlled Ignition
• Transmission: 6-speed w/multi-plate clutch
• Final Drive: O-ring chain
• Suspension/Front: 43mm fork; fully adjustable, 5.1-in travel
• Suspension/Rear: Single shock; adjustable preload and rebound damping, 5.1-in travel
• Brakes/Front: Dual 320 mm floating discs w/4-piston calipers
• Brakes/Rear: 245 mm disc w/single-piston caliper
• Tires/Front: 120/70-ZR17
• Tires/Rear: 190/50-ZR17
• Length: 84.3 in.
• Width: 30.3 in.
• Height: 47.4 in.
• Seat Height: 32.1 in.
• Wheelbase: 57.5 in.
• Rake (Caster Angle): 25.0°
• Trail: 4.3 in.
• Fuel Capacity: 4.75 gal.
• Fuel Economy: 35 mpg
• Wet Weight: 485 lbs.
• Warranty: 1 Year (Limited Factory Warranty)

Specifications

Engine
Engine Type	inline 4-cylinder; DOHC, 20 valves
Displacement	998 cc
Bore and Stroke	77 x 53.6 mm
Cooling	Liquid Cooled
Compression Ratio	11.5:1
Fuel System	Fuel injection
Ignition	TCI: Transistor Controlled Ignition
Chassis
Front Suspension	43mm fork; fully adjustable, 5.1-in travel
Front Brakes	Dual 320 mm floating discs w/4-piston calipers
Front Tire	120/70-ZR17
Rear Suspension	Single shock; adjustable preload and rebound damping, 5.1-in travel
Rear Brakes	245 mm disc w/single-piston caliper
Rear Tire	190/50-ZR17
Dimensions
Dry Weight	Wet Weight: 485 lbs.
Fuel Capacity	4.75 gal.
Wheelbase	57.5 in.
Seat Height	32.1 in.
Trail	4.3 in.
Rake	25.0°
Transmission
Transmission	6-speed w/multi-plate clutch
Final Drive	O-ring chain
General
Colors	Cobalt Blue, Granite Gray/Raven
Warranty	1 Year (Limited Factory Warranty)

Compare Models

		- Year - 2011 2010 2009 2008 - Manufacturer - - Style - - Model -	- Year - 2011 2010 2009 2008 - Manufacturer - - Style - - Model -
Year 2009     Manufacturer Yamaha     Model FZ1     Style Sport     MSRP* $9,790.00     Chassis Front Suspension 43mm fork; fully adjustable, 5.1-in travel     Front Brakes Dual 320 mm floating discs w/4-piston calipers     Front Tire 120/70-ZR17     Rear Suspension Single shock; adjustable preload and rebound damping, 5.1-in travel     Rear Brakes 245 mm disc w/single-piston caliper     Rear Tire 190/50-ZR17     Dimensions Dry Weight Wet Weight: 485 lbs.     Fuel Capacity 4.75 gal.     Wheelbase 57.5 in.     MPG       Seat Height 32.1 in.     Trail 4.3 in.     Rake 25.0°     Engine Engine Type inline 4-cylinder; DOHC, 20 valves     Displacement 998 cc     Bore and Stroke 77 x 53.6 mm     Cooling Liquid Cooled     Compression Ratio 11.5:1     Fuel System Fuel injection     Ignition TCI: Transistor Controlled Ignition     General Speedometer       Tachometer       Odometer       Colors Cobalt Blue, Granite Gray/Raven     Warranty 1 Year (Limited Factory Warranty)     Transmission Transmission 6-speed w/multi-plate clutch     Final Drive O-ring chain
